Beaver Electric Three Phase Winches

Product Code: MHBPL3

 Find a Stockist
Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

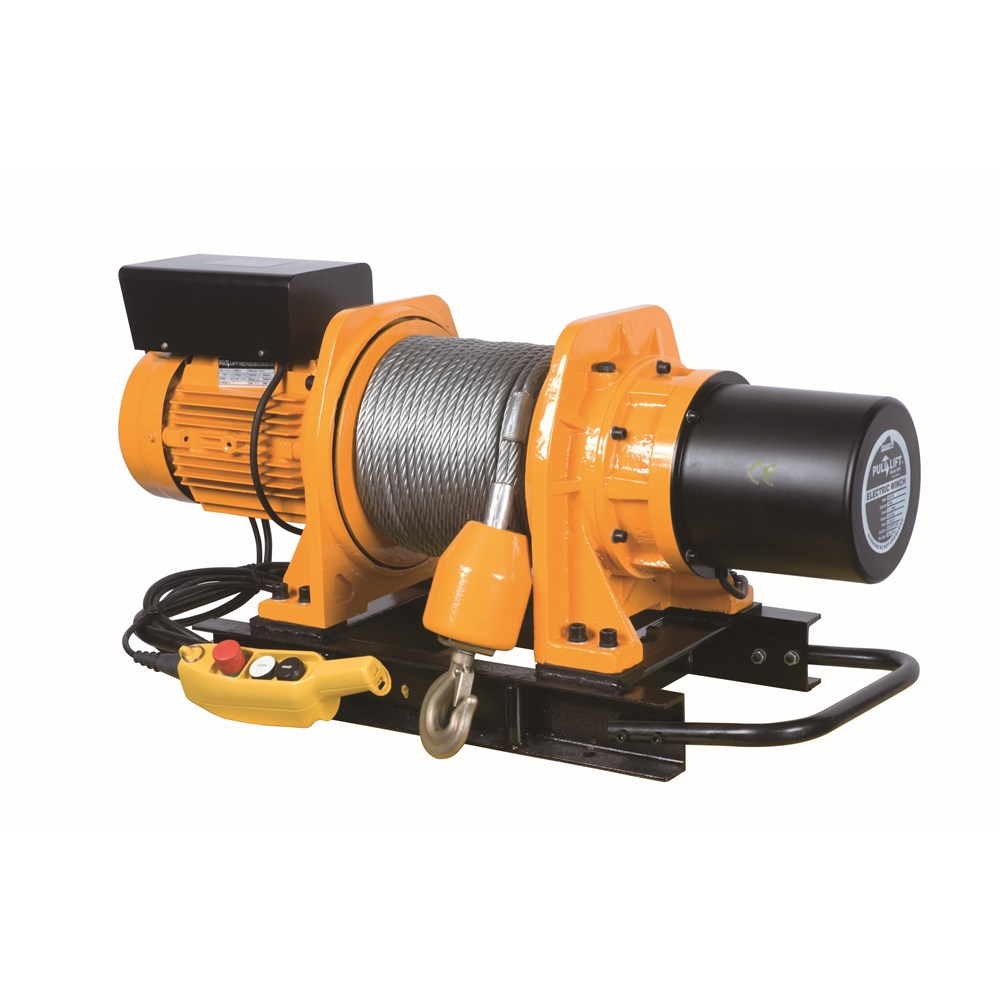

The Beaver Three Phase Electric Winches are precision engineered with a robust construction and quality seals, making them suitable for building sites, slipways, and industrial use.

Product Features:

  • Reliable, powerful motor
  • Lightweight and compact
  • 24V, IP65 pendant control
  • Emergency stop function
  • Automatic load brake and overload clutch
  • Connection of the wire rope to winch drum is via set screw, to ensure rope retention.
  • Cast steel foot mountings
Approved Standards:
  • Complies to AS1418.2
Product Code Rated Capacity Speed Motor Power % ED Effective Pull Height Wire Rope Diameter x Length Weight
BPL3050 0.5t 12-18m/min 2.5HP 25 58m 9mm x 60mm 136kg
BPL3100 1t 12-18m/min 5HP 25 58m 11mm x 60mm 156kg
BPL3220 2.2t 7-12.5m/min 7.5HP 25 97m 16mm x 100mm 450kg

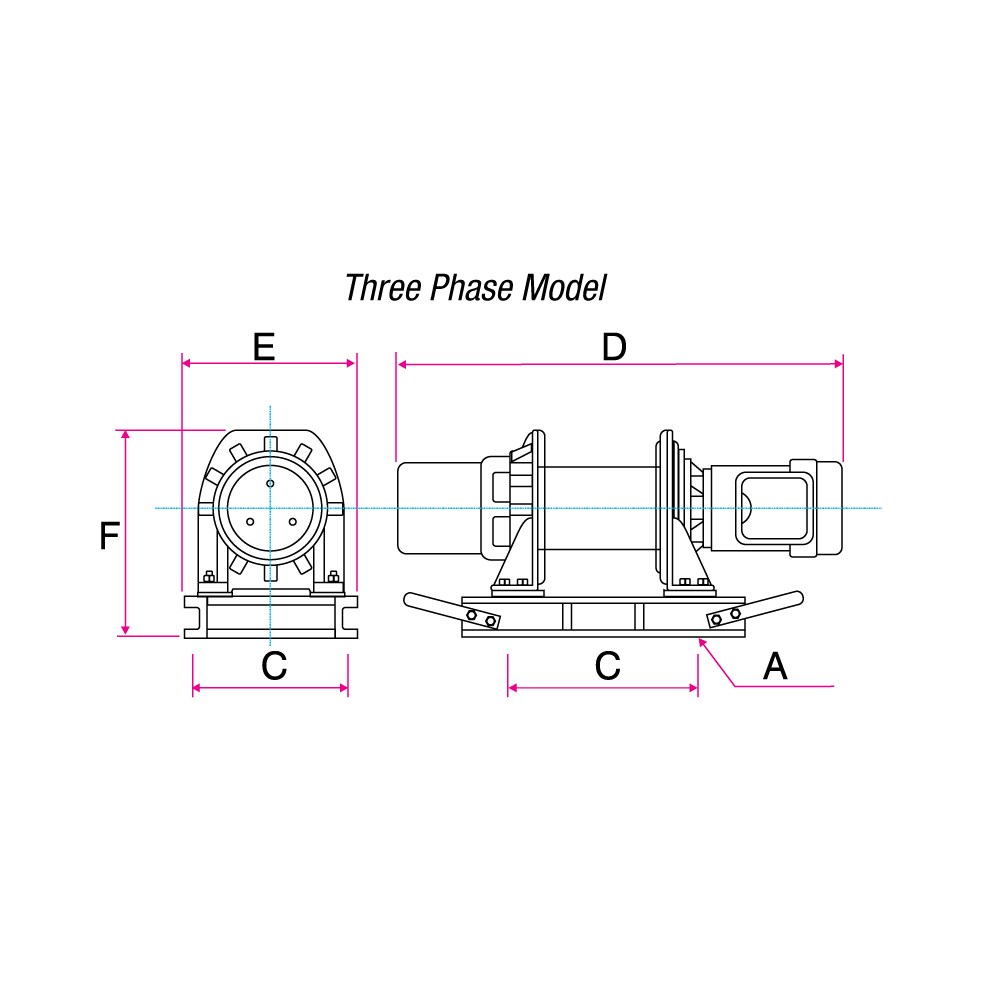

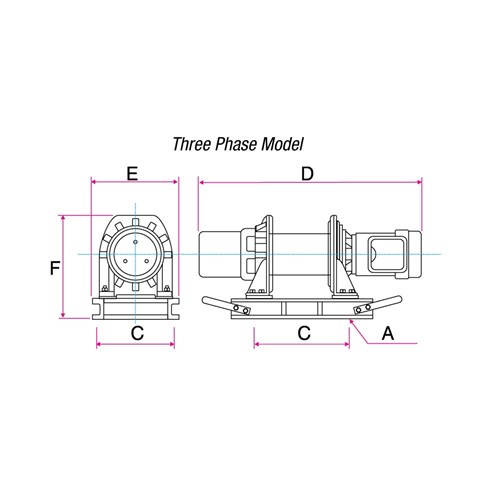

Rated Capacity A B C D E F
0.5t 4 x 10.5D 400mm 330mm 922mm 372mm 430mm
1t 4 x 10.5D 400mm 330mm 935mm 372mm 430mm
2.2t 4 x 12D 600mm 499mm 1160mm 565mm 658mm

For more information on our materials handling range, please contact our Customer Care team.
