Beaver Liftall Single Phase Electric Hoists

Product Code: MHBEL240

Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

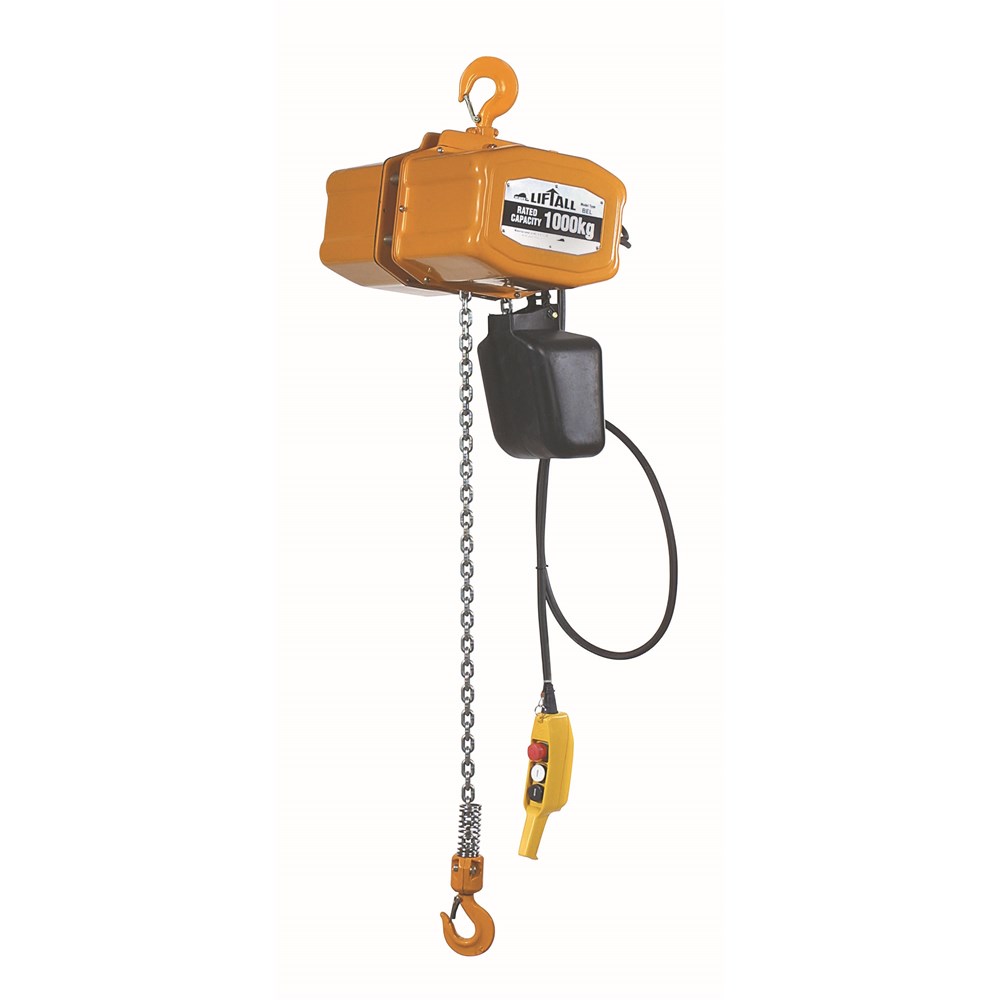

Cost efficient and robust, Beaver Liftall Single Phase Electric Chain Hoists are the first choice when you need to lift heavy loads. They are available in 500kg to 3 tonne capacities.
Model Type:- 240 volt, 50Hz (single phase)


Product Features:
  • All-steel construction, completely enclosed, for strength and durability
  • Includes plated European load chain
  • In built Overload protection clutch
  • Upper and lower electrical limit switches
  • Height (as Standard)
  • All hoists supplied with top suspension hook
  • IP54 rating on all hoists
  • Comprehensive instruction manual, including wiring diagrams, and parts breakdown supplied with every hoist
  • Test certificate also supplied
  • Longer Lift heights available on request
Approved Standards:
  • Complies to AS1418.2
Product Code Rated Capacity
(kg)
Lift Height (m) Lifting Speed (m/min) 50Hz Output (kw) 7.60Hz Hoist Motor Single Phase
Ins Class
Hoist Motor Single Phase
% ED
Load Chain
Diameter (mm)
Load CHain
No. of Falls
Test
Load Tonne
Min Headroom G (mm) Max. Min. Weight (kg) Approx Std Pendant Length (m)
BEL1053S 500 3 5 0.6 E 40 7.0 1 0.625 545 64 2
BEL1056S 500 6 5 0.6 E 40 7.0 1 0.625 545 68 5
BEL1103S 1000 3 5 1.2 E 40 7.0 1 1.25 595 65 2
BEL1106S 1000 6 5 1.2 E 40 7.0 1 1.25 595 69 5
BEL1203SD 2000 3 2.5 1.2 E 40 7.0 2 2.5 700 72 2
BEL1206SD 2000 6 2.5 1.2 E 40 7.0 2 2.5 700 79 5
BEL1303ST 3000 3 1.3 1.2 E 40 7.0 3 3.75 790 80 2
BEL1306ST 3000 6 1.3 1.2 E 40 7.0 3 3.75 790 90 5
*LC = Load Chain

A comprehensive instruction manual, including wiring diagrams, and parts breakdown are supplied with every host. A test certificate is also supplied, confirming that it is tested to AS 1418.2.

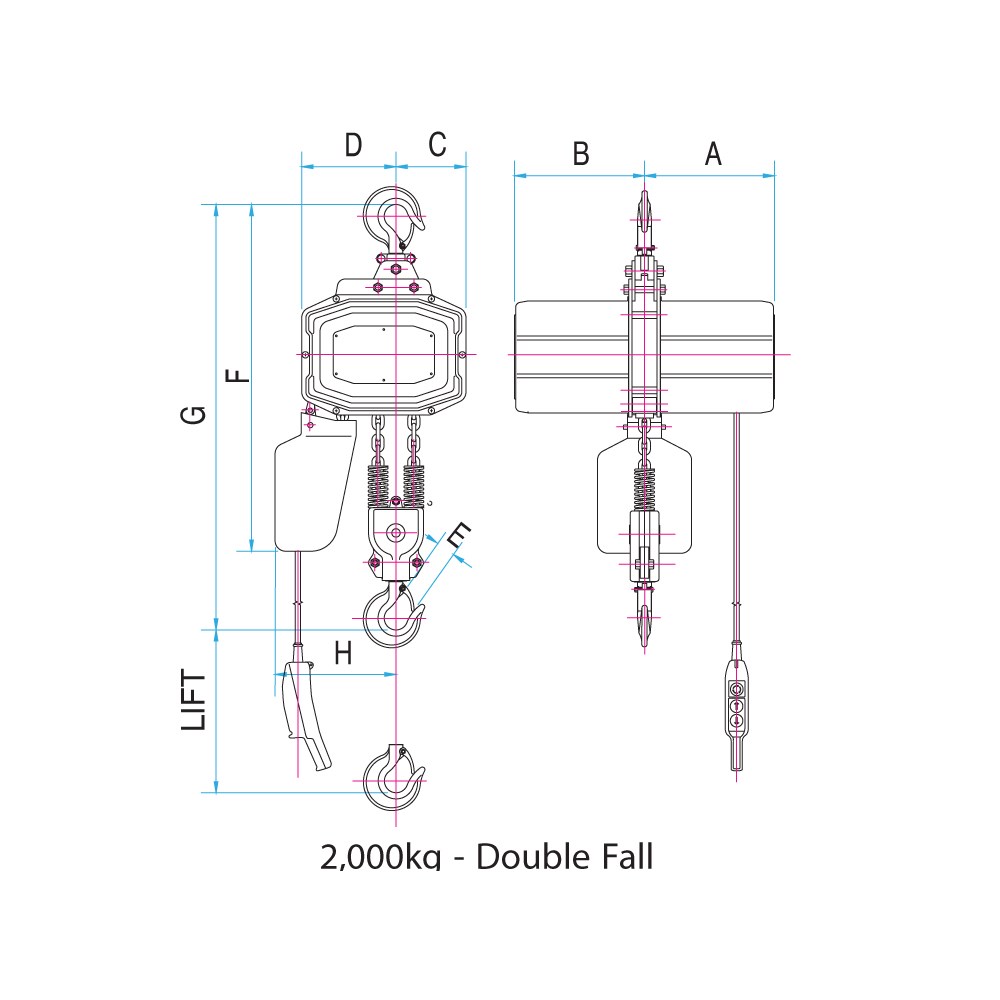

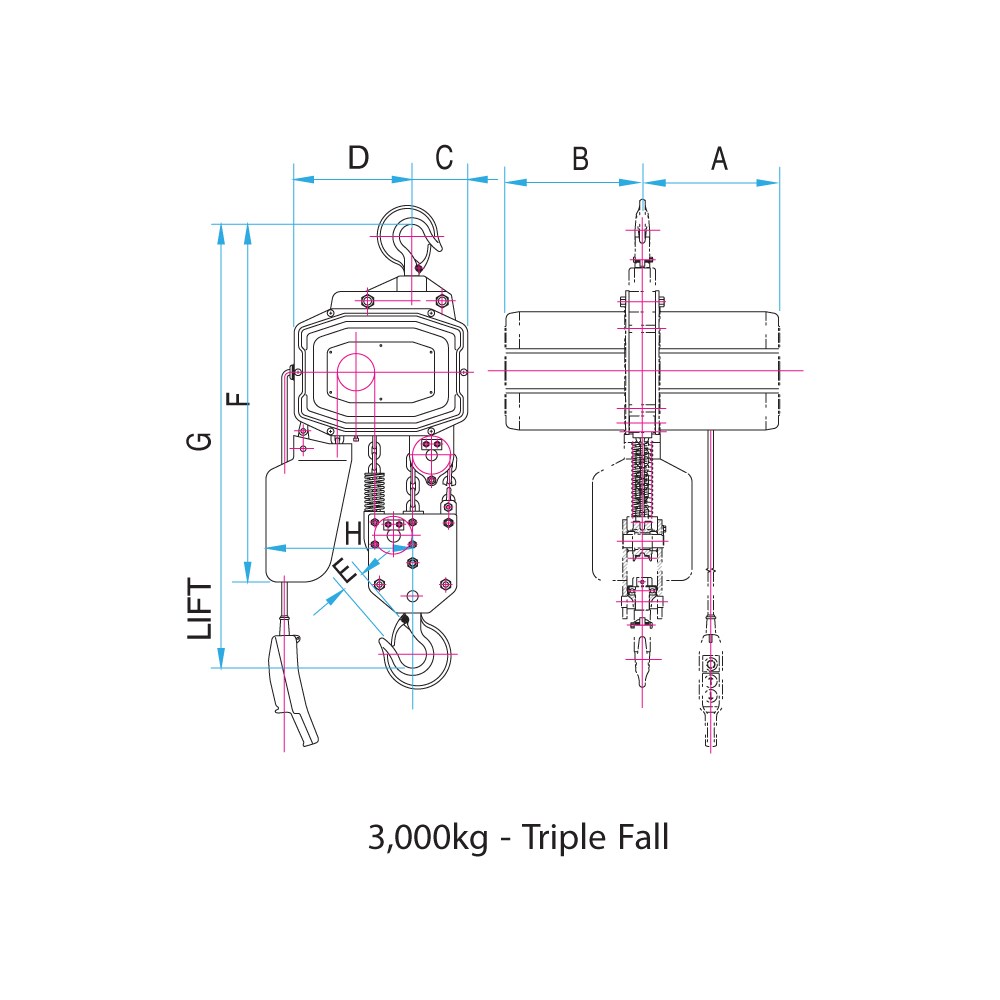

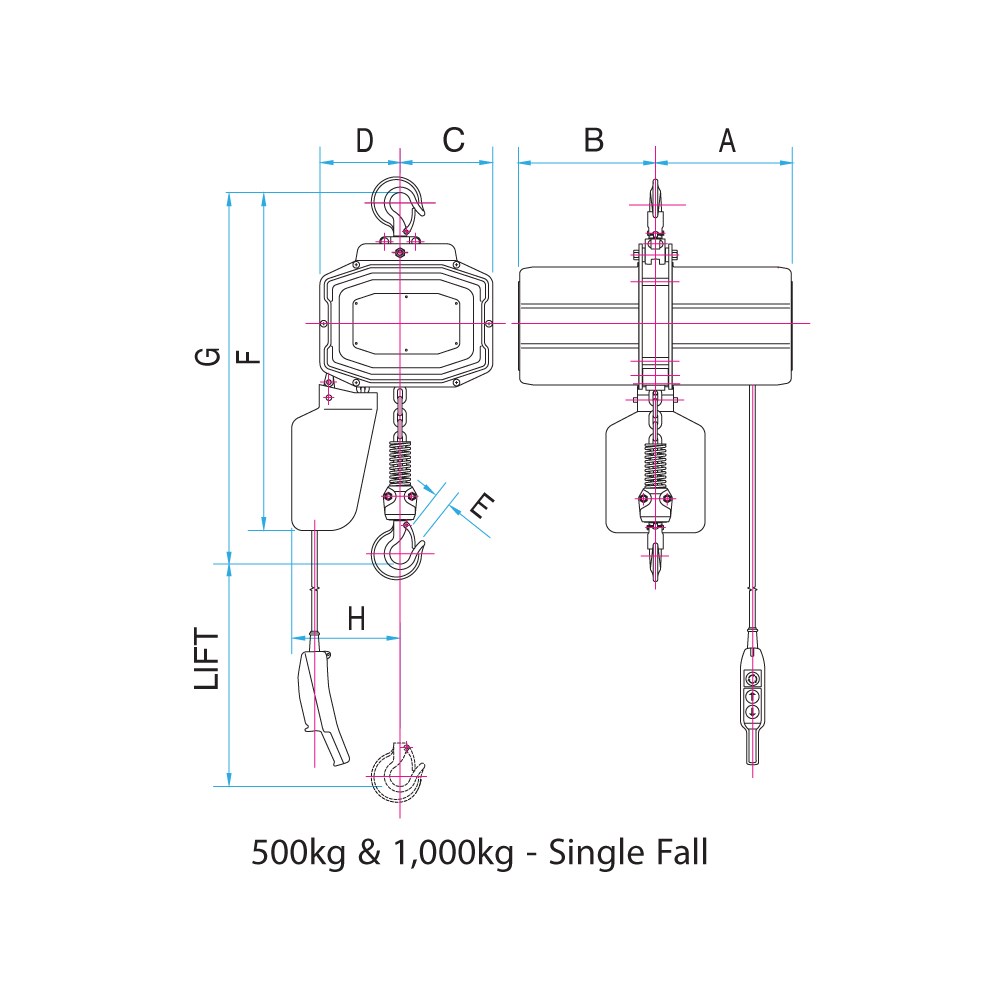

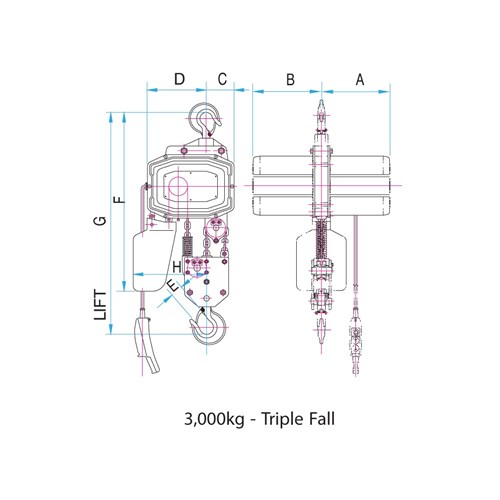

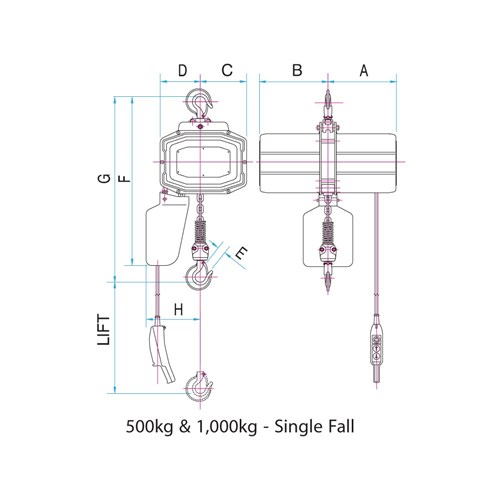

Product Code Rated Capacity A B C D E F G H
BEL1053S 0.5t 249mm 249mm 168mm 146mm 25mm 565mm 545mm 195mm
BEL1056S 0.5t 249mm 249mm 168mm 146mm 25mm 565mm 545mm 195mm
BEL1103S 1t 249mm 249mm 168mm 146mm 30mm 614mm 545mm 195mm
BEL1106S 1t 249mm 249mm 168mm 146mm 30mm 614mm 545mm 195mm
BEL1203SD 2t 249mm 249mm 180mm 134mm 33mm 665mm 700mm 235mm
BEL1206SD 2t 249mm 249mm 180mm 134mm 33mm 665mm 700mm 235mm
BEL1303ST 3t 249mm 249mm 180mm 134mm 41mm 760mm 790mm 360mm
BEL1306ST 3t 249mm 249mm 180mm 134mm 41mm 760mm 790mm 360mm

For more information on our materials handling range, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.

Downloads
Data Sheet
Technical Specifications
Category Beaver
Category Hoists & Winches
Brand Material Handling
