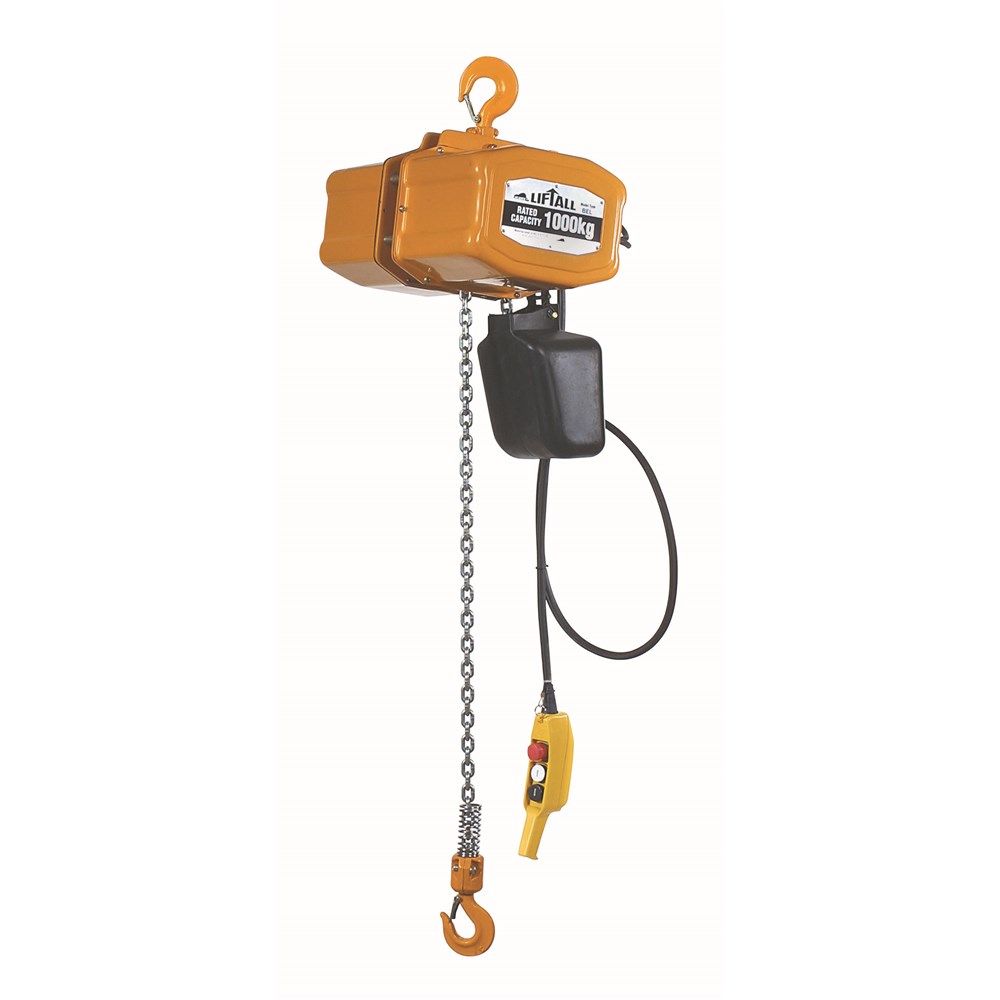

Beaver Liftall Three Phase Electric Hoists

Product Code: MHBEL415

Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

The Beaver Liftall Three Phase Electric Hoists are ideal for heavy-duty lifting applications where lifting larger objects is necessary. Three Phase Electric Hoists also use less energy to generate the same amount of power as a single-phase hoist.  Meaning they can lift heavier loads while consuming less energy.
Model Type: Bel 415 volt 50Hz (Three Phase)


Product Features:
  • All-steel construction, completely enclosed, for strength and durability
  • High efficiency 3 phase motor
  • Includes plated European load chain
  • Overload protection clutch
  • Upper and lower electrical limit switches
  • Pendant is 1 metre less than lift height (as Standard).
  • All hoists supplied with top suspension hook.
  • IP54 rating on all hoists.
  • Comprehensive instruction manual, including wiring diagrams, and parts breakdown supplied with every hoist.
  • Test certificate also supplied
  • Longer Lift heights available on request.
Approved Standards:

  • Complies to AS1418.2
Product Code Rated Capacity (kg) Lift Height (m) Lifting Speed m/min 50Hz  Hoist Motor Three Phase
Output (kw) 50Hz
Hoist Motor Three Phase
Ins Class
Hoist Motor Three Phase
% ED
Load Chain
Dia. (mm)
Load Chain
No. of Falls
Test Load Tonne  Min Headroom G (mm) Max  Min. Weight (kg) Approx Std Pendant Length (m)
BEL2053S 500 3 6.3 0.8 F 40 7.0 1 0.625 545 64 2
BEL2056S 500 6 6.3 0.8 F 40 7.0 1 0.625 545 68 5
BEL2103S 1000 3 6.3 1.6 F 40 7.0 1 1.25 595 65 2
BEL2106S 1000 6 6.3 1.6 F 40 7.0 1 1.25 595 69 5
BEL2203SD 2000 3 3.2 1.6 F 40 7.0 2 2.5 700 72 2
BEL2206SD 2000 6 3.2 1.6 F 40 7.0 2 2.5 700 79 5
BEL2303ST 3000 3 2.1 1.6 F 40 7.0 3 3.75 790 80 2
BEL2306ST 3000 6 2.1 1.6 F 40 7.0 3 3.75 790 90 5
*LC = Load Chain

A comprehensive instruction manual, including wiring diagrams, and parts breakdown are supplied with every host. A test certificate is also supplied, confirming that it is tested to AS 1418.2.

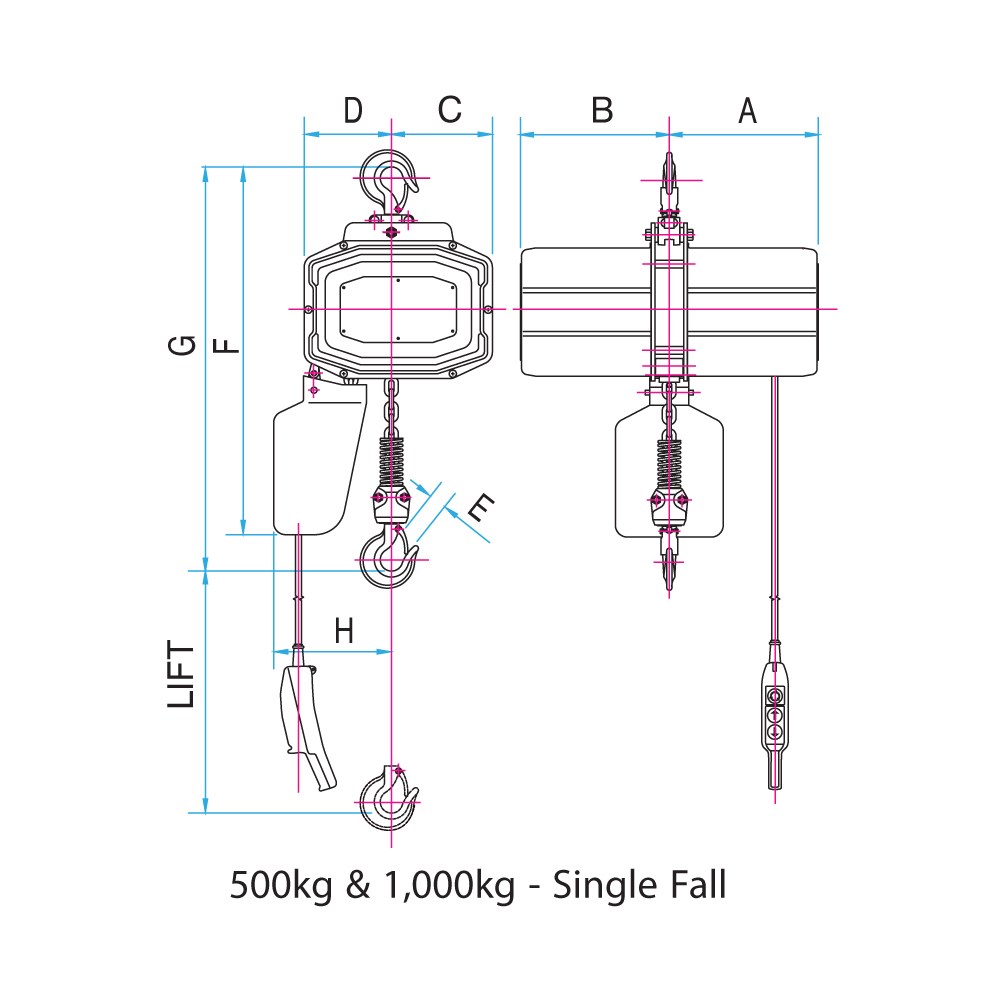

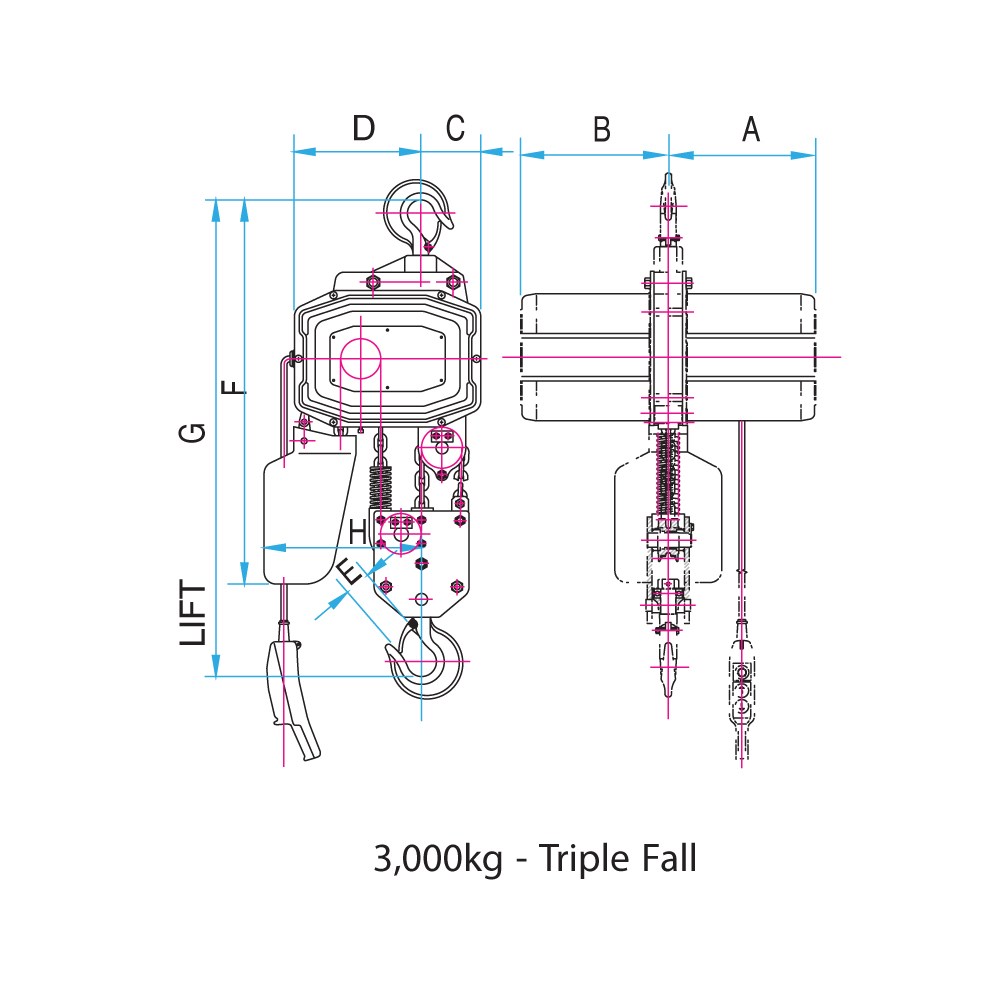

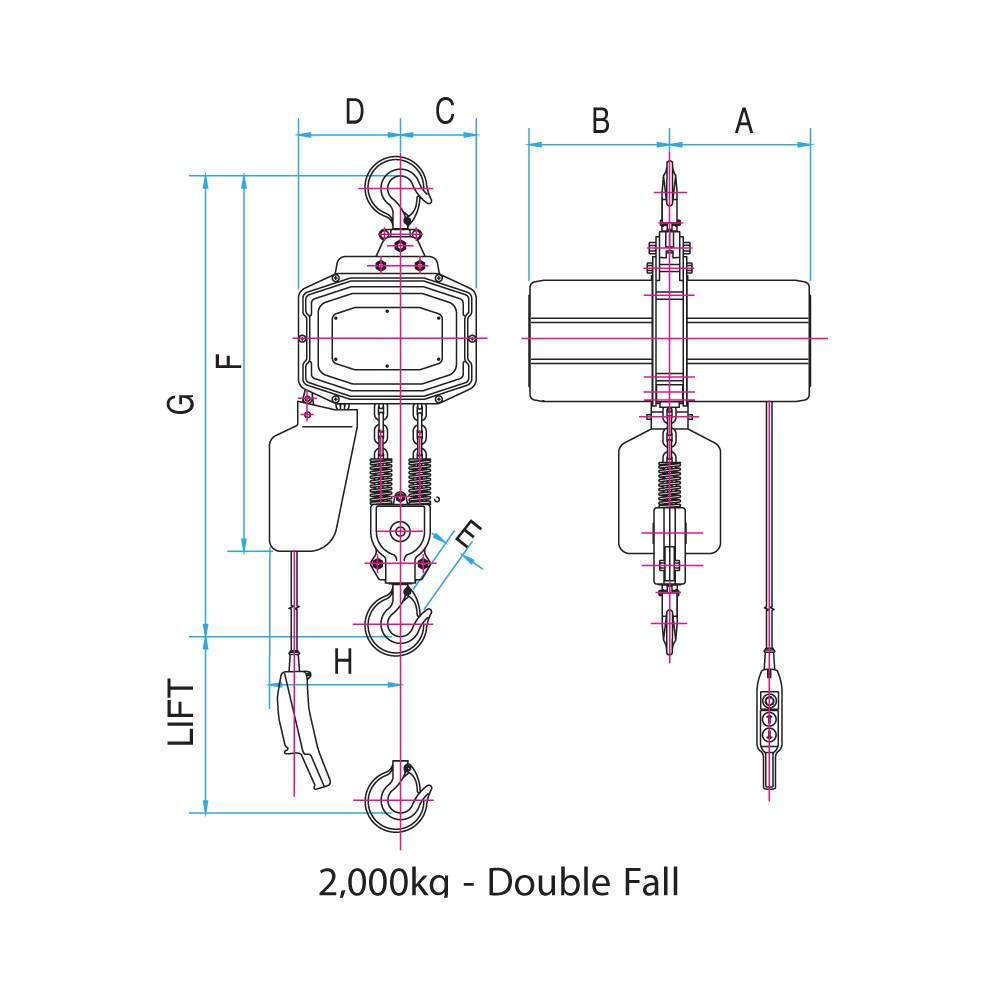

Product Code Rated Capacity A B C D E F G H
BEL2053S 0.5t 249mm 249mm 168mm 146mm 25mm 565mm 545mm 195mm
BEL2056S 0.5t 249mm 249mm 168mm 146mm 25mm 565mm 545mm 195mm
BEL2103S 1t 249mm 249mm 168mm 146mm 30mm 614mm 595mm 195mm
BEL2106S 1t 249mm 249mm 168mm 146mm 30mm 614mm 595mm 195mm
BEL2203SD 2t 249mm 249mm 180mm 134mm 33mm 665mm 700mm 235mm
BEL2206SD 2t 249mm 249mm 180mm 134mm 33mm 665mm 700mm 235mm
BEL2303ST 3t 249mm 249mm 180mm 134mm 41mm 760mm 790mm 360mm
BEL2306ST 3t 249mm 249mm 180mm 134mm 41mm 760mm 790mm 360mm

For more information on our materials handling range, please contact our Customer Care team.
