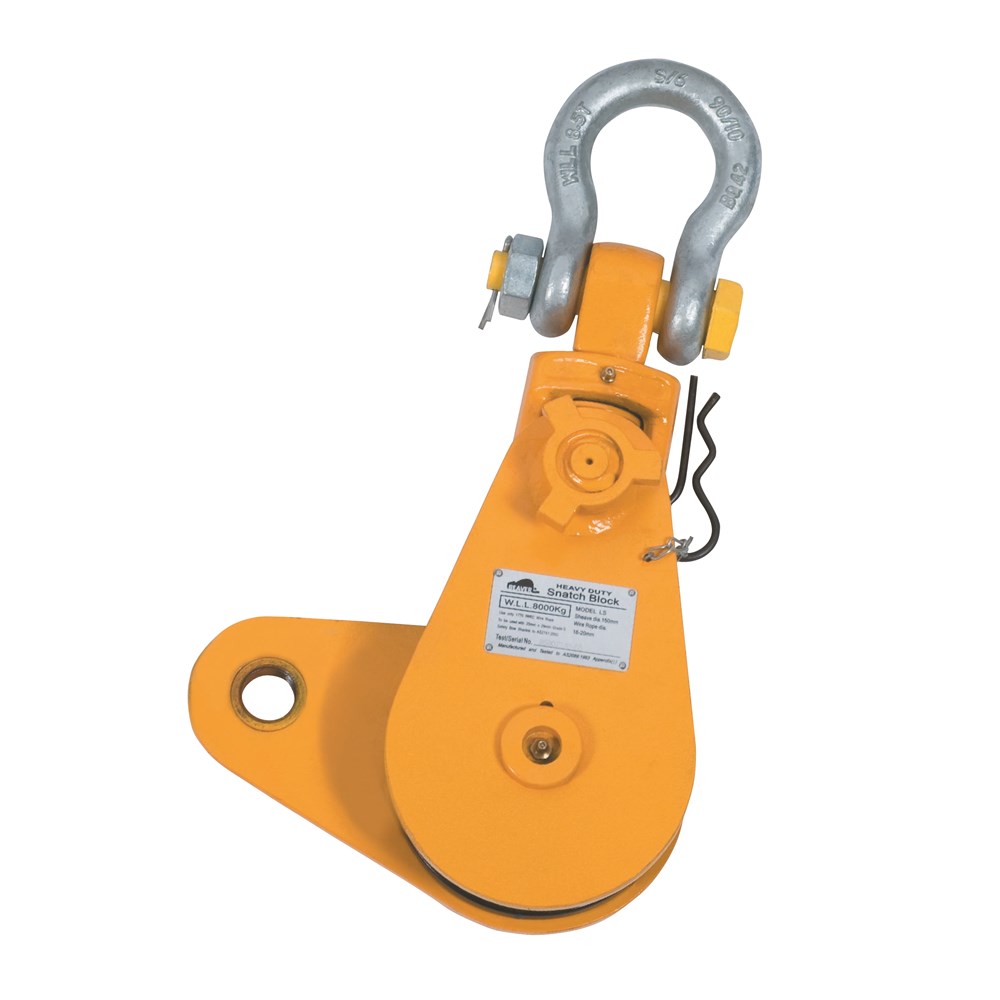

Beaver's range of heavy duty snatch blocks offer the very best in innovation, safety, reliability, and performance, with applications for construction, mining, offshore exploration, and the building industry. These snatch blocks are manufactured using a solid, all-steel construction.
Safety Features:
- High tensile strength steel body & sheave
- Quality bronze bush bearings
- Blocks fitted with a rated Grade S bow shackle
- Available from 3.7 tonne - 20 tonne
Approved Standards:
Product Code |
WLL Tonne |
Wire Rope Dia. mm |
Sheave Dia. mm F1 |

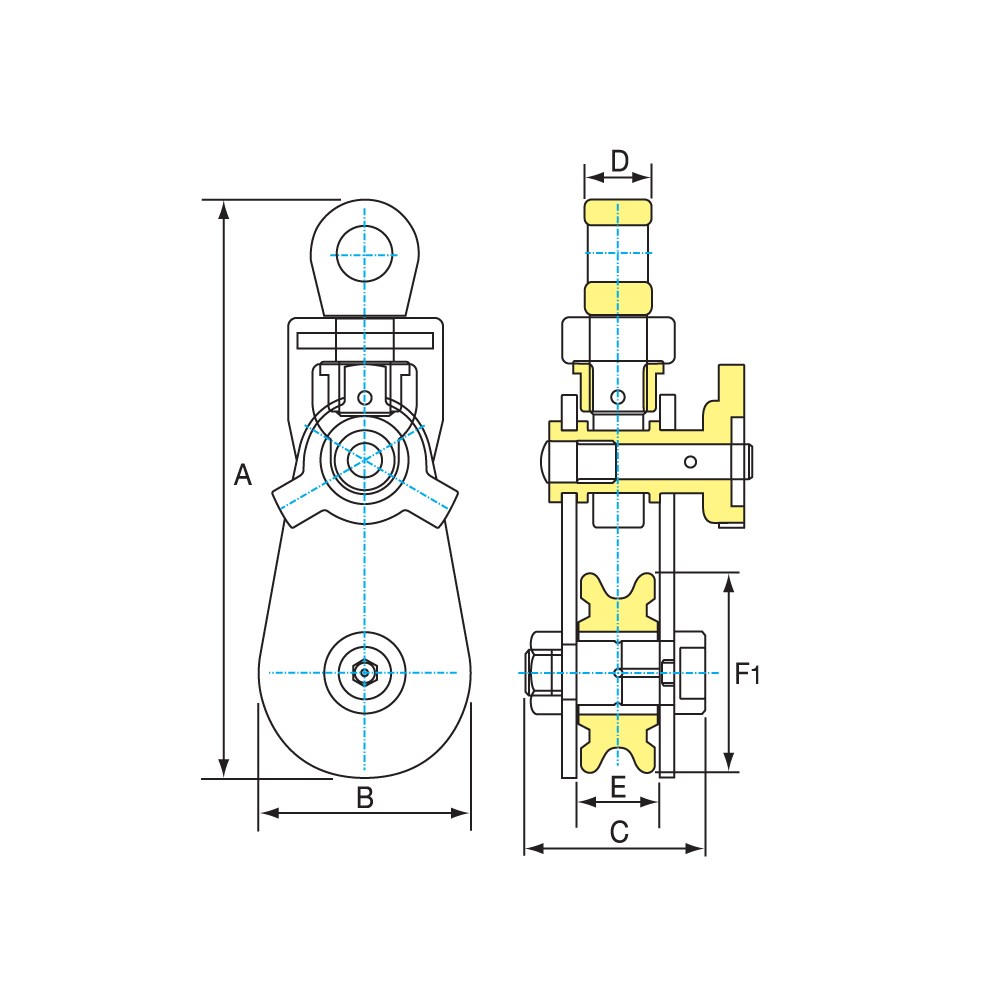

Dimentions |
Grade 'S' Safety Bow Shackle to AS 2741 |
Weight kg |
A |
B |
C |
D |
E |
557210S |
4000 |
14 |
210 |
367 |
220 |
68 |
32 |
32 |
22 x 25 mm |
10.5 |
3700 |
12 |
557275S |
8000 |
18 |
275 |
518 |
285 |
94 |
40 |
48 |
25 x 29 mm |
28.5 |
6000 |
16 |
557395S |
12000 |
26 |
395 |
682 |
410 |
133.5 |
52 |
63.5 |
35 x 38 mm |
61 |
12000 |
22 |
557420S |
15000 |
28 |
420 |
725 |
435 |
133.5 |
55 |
63.5 |
38 x 41 mm |
65 |
15000 |
26 |
557489S |
22000 |
32 |
480 |
867 |
500 |
155 |
68 |
70 |
44 x 51 mm |
148 |
20000 |
28 |
For more information on our materials handling range, please contact our Customer Care team.
